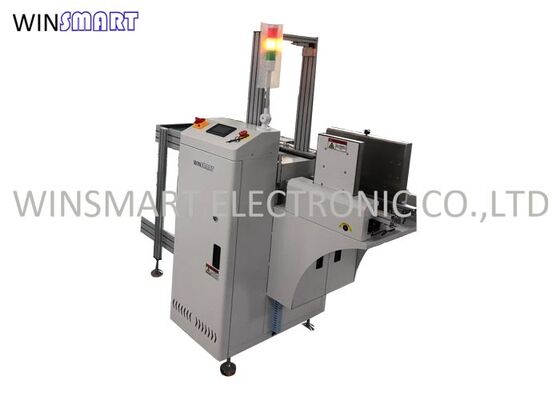

Automatic Destacker PCB Handling Machine for High Volume Production with 6S PCB Load

نام تجاری:	Winsmart
شماره مدل:	SMTDSA-250
موق:	1 واحد
قیمت:	USD1-50000/unit
جزئیات بسته بندی:	مورد تخته سه لا
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

گواهی:

بار PCB:

حدود ساعت 6

بار قدرت:

Supply Max. حداکثر تامین To 600VA به 600VA

وزن ناخالص:

200 کیلوگرم

کیفیت:

کیفیت بالا و ۱۰۰ درصد تست شده

L900*W830*H1200mm

LR /RL

ابعاد ماشین:

600 (L) * 800 (W) * 1250 (H) میلی متر

تایپ کنید:

دستگاه جابجایی PCB

قابلیت ارائه:

500 واحد در ماه

برجسته کردن:

High Volume Production PCB Handling Machine,Automatic Destacker PCB Loader Unloader,6S PCB Load Automatic Destacker

Automatic Destacker PCB Loader Unloader

6S PCB Load Automatic Destacker

توضیح محصول

PCB Handling Machine Automatic Destacker

Automatic destacker for high-volume PCB production lines, designed to separate stacked PCBs and feed them into subsequent assembly processes with precision and efficiency.

Product Overview

The Automatic Destacker is a specialized PCB handling machine that automatically separates stacked printed circuit boards in a controlled manner. This equipment is essential for high-volume production lines where consistent automated handling maintains efficiency and reduces human error.

Key Features

Product Name: PCB Loader Unloader

Marketing Type: SMT Production Line Equipment

Function: PCB Transportation

Delivery: Within 7 Days After Payment

Power: 220/110V

Direction: L-R / R-L

Technical Specifications

Attribute	Value
Direction	L-R / R-L
Gross Weight	200kgs
Power	220/110V
Marketing Type	SMT PCB Production Line
Power Load	Supply Max. To 600VA
Dimension	L900W830H1200mm
Unloading Method	Automatic
Quality	High Quality And 100% Tested
Type	SMT Machine Parts
Delivery	Within 7 Days After Payment

Primary Functions

The automatic PCB destacker separates individual PCBs from stacks and feeds them into subsequent assembly stages including:

Inspection stations
Component placement (SMT and through-hole)
Soldering processes (wave soldering, reflow soldering)
Testing and quality control

This equipment ensures careful handling without damage, provides continuous automated PCB supply, and reduces manual labor costs.

Working Principle

Stack Loading: Stacked PCBs are loaded onto input tray or conveyor system
Sensing: Optical or mechanical sensors detect stack and ensure proper alignment
Feeding Mechanism: Mechanical/robotic arm or rollers grab top PCB from stack
Destacking Process: Precise separation of top PCB without damage or sticking
Orientation and Alignment: Automatic positioning to match required orientation
Continuous Feed: Seamless destacking and feeding into production line

Support and Services

Installation and setup guidance for proper equipment installation
Operator training for effective and efficient product use
Ongoing technical support for operational questions and concerns
Maintenance and repair services for peak performance
Upgrades and updates with latest technology and features
