ماشین برش PCB Depaneling V Cut

Less 300u Strain Aluminum LED PCB Cutter 400mm Linear Blade PCB Depanelizer

تمام دسته ها

ماشین برش PCB Depaneling V Cut

سبد خوراک SMT

با ما تماس بگیرید

Ms. Amy

info@smtfullsolution.com

+86-752-6891906

+8613829839112

حالا تماس بگیرید

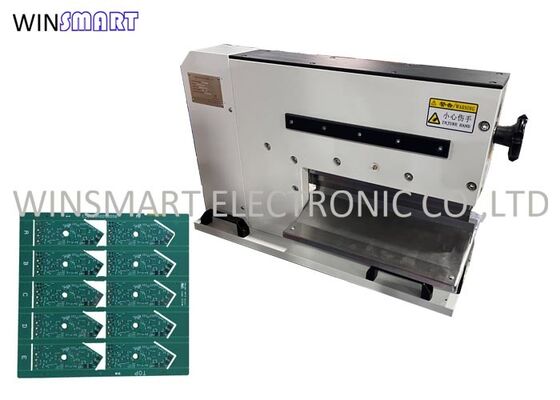

Less 300u Strain Aluminum LED PCB Cutter 400mm Linear Blade PCB Depanelizer

نام تجاری:	Winsmart
شماره مدل:	SMTPD2
موق:	1 واحد
قیمت:	USD2000-5000/unit
جزئیات بسته بندی:	مورد تخته سه لا
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

گواهی:

نام دستگاه:

دستگاه پاک کردن صفحه PCB پنوماتیک

سرعت را به حداقل برسانید:

0-400mm/s

ظرفیت برش:

330 میلی متر

نوع تیغه:

تیغه خطی

اتصال PCB:

V-CUT

ضخامت PCB:

0.3-5 میلی متر

وضعیت:

برش مدار چاپی گیوتین

قابلیت ارائه:

500 واحد در ماه

برجسته کردن:

300u strain aluminum LED PCB cutter,400mm linear blade PCB depanelizer,V-cut PCB depaneling machine with warranty

400mm linear blade PCB depanelizer

V-cut PCB depaneling machine with warranty

توضیح محصول

Less 300u Strain Aluminum LED PCB Cutter 400mm Linear Blade PCB Depanelizer

The PCB Cutter is a specialized depaneling machine designed for precise cutting and separation of printed circuit boards (PCBs). Using a guillotine-style cutting mechanism, it ensures clean, accurate cuts with minimal waste and damage to the PCB. Ideal for PCB manufacturing, prototyping, and repair environments where precision is essential.

Features

1). Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

2). Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

3). Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

4). cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

5). Blades can be re-sharpened.

6). Cutting length could be customized.

7). Durable design for long term usage.

Technical Specifications

Model	SMTPD2
Max cutting length	200-580mm
CE approval	Yes
PCB connection	V-cut
PCB material	FR4, MCPCB, CEM
PCB thickness	0.3-5mm
Blade type	Linear blade
Cutting speed	Adjustable
Cutting type	Shear
Operation	Foot pedal, manual

Primary Functions

The primary function of the PCB Cutter is to cut through PCBs with a maximum clearance of 2mm. This ensures that it can handle standard and more complex PCB designs, offering efficient separation of individual board sections or trimming excess material. The guillotine mechanism allows for quick and consistent cutting without the need for multiple passes, improving workflow efficiency in PCB assembly or repair.

Key Advantages

Precise Cuts: High-accuracy cutting with minimal risk of PCB or component damage
Increased Efficiency: Guillotine mechanism reduces cuts and rework needed
Reduced Material Waste: Clean separation minimizes scrap and waste
Long-lasting Durability: Metal core construction enhances lifespan and reduces maintenance
Versatile Use: Suitable for wide range of PCB thicknesses and designs
Improved Safety: Protective features ensure safer working conditions
Ergonomics: Reduces operator strain during extended use

Machine Photo:
